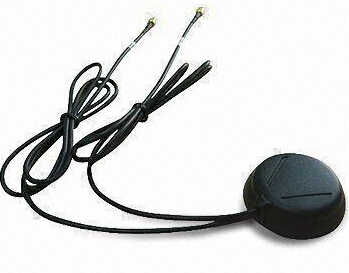

|  GPS Active/GSM 2-in-1 Combo Antenna with RG174(5M), SMA Plug (GPS), and FME Jack (GSM)
• GPS active/GSM 2-in-1 + RG174(5M) + SMA plug (GPS) + FME jack(GSM)
• Antenna type: patch mount
• Antenna size: 50 x 50 x 14mm
• GSM:
o Gain: 3dBi
o Frequencies: 900/1,800MHz
o VSWR: <1.8
o Polarization linear: vertical
o Temperature: -40 to 85°C
o Humidity: 40 to 95% RH
o Connector: GSM and FME female (optional)
o Cable: RG-174 options
o Length: 5m (option)
• GPS:
o Ceramic path specifications:
Operating frequency: T1, 1575.42 ±1.023MHz
Output impedance: 50Ω
Polarization: RHCP
Bandwidth: 10MHz minimum at S11 ≤-10dB
Gain at 10° elevation -1dBic typical
Axial ratio: 3.0dB (typical)
o LNA/filter specification:
Operating frequency: T1 1575.42 ±1.023MHz
Gain: 28dB (typical)
Noise figure: 1.5 (typical)
Filter: DR filter
20dB, 30dB minimum at fo ±50MHz
30dB, 35dB minimum at fo ±50MHz, fo = 1575.42MHz
Output VSWR: 2.0 (maximum)
Voltages: 2.3 to 5.5V
|
