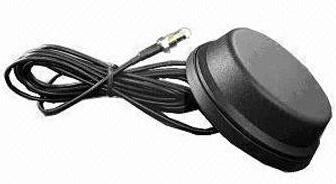

|  28dBi GPS Active Antenna with Roof Screw Mount and SMA Plug
• Operating frequency T1 1575.42 ±1.023MHz
• Antenna type roof screw mount
• Output impedance: 50Ω
• LNA/filter specification:
o Operating frequency: T1 1575.42 ± 1.023MHz
o Gain 28dB type
o Output VSWR: 2.0 maximum
o Voltages: 2.3 to 5.5V
o 2.5V: 6.6mA typical
o 3V: 8.6mA typical
o 4V: 12.6mA typical
• General specifications:
o Dimensions: 80 x 80 x 45mm
o Antenna color: black
o Coaxial cable RG174 length: 5m (optional)
o Cable connector SMA male (optional)
o Operating temperature: -30 to 85°C
o Storage temperature: -40 to 90°C
|
