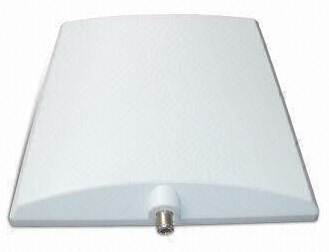

Panel Type WLAN Antenna with 18dBi Gain, 2.4 to 2.5GHz Frequencies, and N Jack Connector
• Electrical specifications:
o Frequencies: 2.4GHz±5MHz
o Gain: 18dBi
o VSWR: ≤1.8:1
o Radiation: 1 to 4λ dipole
o Polarization: vertical
o Connector: N female
o Antenna length: 390 x 390mm
• Mechanical specifications:
o Maximum wind velocity: 216km/hr
o Dimensions: 330 x 295 x 40mm
o Total weight: 2kg
