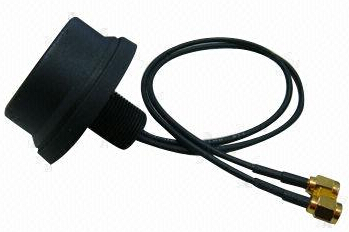

|  • GPS: active/GSM850/900/1800/1900/2100MHz 2dBi 2-in-1, 50mmcircle roof screw mount + RG174 (3m) x 2 + SMA plug (GPS) + FMEjack (GSM)
• General specifications:
o Antenna type: roof screw mount
o Antenna size: 47 x 50 x 50mm
o Antenna color: black
o Coaxial cable: RG174 length: 3M (option)
• GSM:
o Gain: 2dBi
o Frequency: 850/900/1800/1900/2100MHz
o VSWR: <1.9
o Polarization: linear vertical
o Temperature: -40 to 85°C
o Humidity: 40 to 95% RH
o Connector (GSM): FME female (option)
• GPS:
o Ceramic path specification:
o Operating frequency: T1 1575.42±1.023MHz
o Output impedance: 50©
o Polarization: RHCP
• LNA/filter specification:
o Operating frequency: T1 1575.42±1.023MHz
o Gain: 28dB typical
o Dimensions: 41 x 38 x 13mm
o Cable connector (GPS): SMA male (option)
o Operating temperature: -30 to 85°C
o Storage temperature: -40 to 90°C
|
