Quick Details:
• Place of Origin: Zhejiang, China (Mainland)
• Brand Name: G-WIRE
• Model Number: GW-RG213

• Conductor Material: CCS
•  Insulation Material: Solid XLPE
• Jacket: XLPE
• Number of Conductors: Stranded
• Application: Communication, electronic warfare, military navigation, radar, aviation electronic equipment
• Color: White/Brown/Black/Customer colors
Specifications:

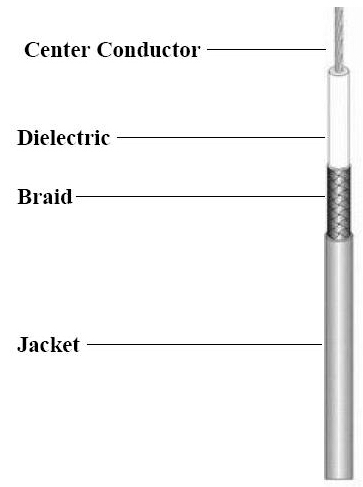

Center Conductor Dia. 7*21AWG, 7*0.72mm CCS
Insulation Dia. 0.285”,7.24+/-0.05mm XLPE
Shield Type 95% TC Braid
Jacket Dia. 0.405” ,10.28+/-0.15mm XLPE
Capacitance 104+/-3 pF/m
Impedance 50+/-3 Ohm
Velocity of Propagation 64%
Sparker Test 5000V
Bending Radius:41.10mm

Packaging & Delivery:
Packaging: 305m/500m/wooden drum/Box
Other packing available according to your requests.
Delivery: 15-30 days after order

More information:
• Good quality, competitive price
• Fast delivery (2-4weeks)
• Free sample (short meters)
• CE/ROSH/UL certification
• Detailed test data available
