Quick Details:
• Place of Origin: Zhejiang, China (Mainland)
• Brand Name: G-WIRE
• Model Number: GW-58C/U • Conductor Material: CCS
• Insulation Material: Solid XLPE
• Jacket: XLPE
• Number of Conductors: Stranded
• Application: Communication, electronic warfare, military navigation, radar, aviation electronic equipment
• Color: White/Brown/Black/Customer colors
Specifications:

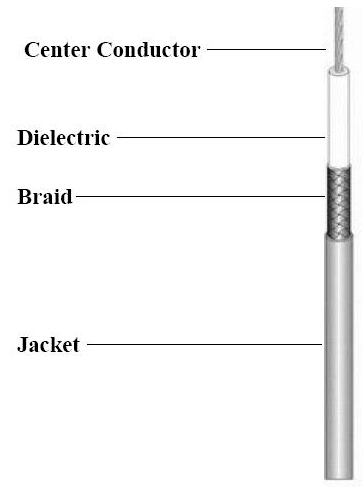

Center Conductor Dia. 10*30AWG, 10*0.254mm CCS
Insulation Dia. :0.119”,3.02+/-0.05mm XLPE
Shield Type: 95% TC Braid
Jacket Dia. 0.195” ,4.95+/-0.15 mm XLPE
Capacitance 104+/-3 pF/m
Impedance 50+/-3 Ohm
Velocity of Propagation 64%
Sparker Test 1900V
Bending Radius:19.80mm Packaging & Delivery:
Packaging: 100m/coil 305m/500m/wooden drum/Box
Other packing available according to your requests.
Delivery: 15-30 days after order More information:
• Good quality, competitive price
• Fast delivery (2-4weeks)
• Free sample (short meters)
• CE/ROSH/UL certification
• Detailed test data available |
