Quick Details:
Semi-flex series cable, with MIL-C-17 the main type of 670-047/86/141/250, good processability, good flexibility, high reliability, low attenuation, low standing wave ratio and other characteristics, are widely used in various types of radio, microwave, high frequency signal transmission of microwave measuring equipment such as communication equipment
• Place of Origin: Zhejiang, China (Mainland)
• Brand Name: G-WIRE
• Model Number: GW-5008
• Conductor Material: SCCS
• Insulation Material: PTFE
• Jacket: FEP
• Number of Conductors: SINGLE
• Application: Precise measurement
Packaging & Delivery:
Packaging: 100meter/305meter/reel/box
Other packing available according to your request.
Delivery: 15-30 days after order

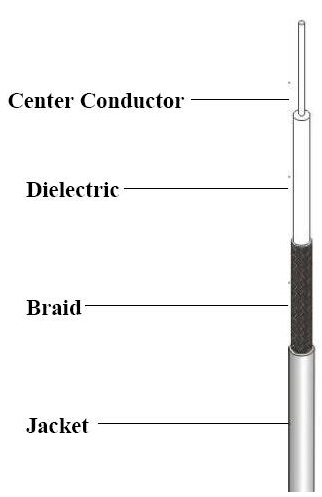

Specifications:
Center Conductor Dia. 0.0425” 1.08mm SCCS(Silver plated Copper Clad Steel)
Insulation Dia. 0.138”,3.50mm PTFE
Shield Type Tin plated copper braid, 100% Coverage Dia.0.161” (4.10mm)
Jacket 0.185”+/-0.004” (4.70+/-0.10mm) FEP
Capacitance 95.1+/-3 pF/m Nom
Impedance 50+/-2 Ohm
Velocity of Propagation 69.50% Nom.
Operating Frequency ≤18GHz
Operation Temp. -65℃-165℃
Minimum Inside Bend Radius 10.00mm More information:
• Good quality, competitive price
• Fast delivery (2-4weeks)
• Free sample (short meters)
• CE/ROSH/UL certification
• Detailed test data available |
