Quick Details:
Semi-flex series cable, with MIL-C-17 the main type of 670-047/86/141/250, good processability, good flexibility, high reliability, low attenuation, low standing wave ratio and other characteristics, are widely used in various types of radio, microwave, high frequency signal transmission of microwave measuring equipment such as communication equipment
• Place of Origin: Zhejiang, China (Mainland)
• Brand Name: G-WIRE
• Model Number: GW-5007
• Conductor Material: SCCS
• Insulation Material: PTFE
• Jacket: FEP
• Number of Conductors: SINGLE
• Application: Precise measurement
Packaging & Delivery:
Packaging: 100meter/305meter/reel/box
Other packing available according to your request.
Delivery: 15-30 days after order
Specifications:

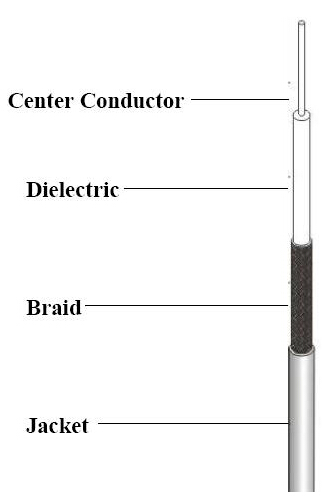

Center Conductor Dia. 0.020” 0.52mm SCCS(Silver plated Copper Clad Steel)
Insulation Dia. 0.1173”,2.98mm PTFE
Shield Type Tin plated copper braid, 100% Coverage Dia.0.139” (3.52mm)
Jacket 0.161”+/-0.004” (4.10+/-0.10mm) FEP
Capacitance 62+/-3 pF/m Nom
Impedance 75+/-2 Ohm
Velocity of Propagation 69.50% Nom.
Operating Frequency ≤33GHz
Operation Temp. -65℃-165℃
Minimum Inside Bend Radius 8.00mm More information:
• Good quality, competitive price
• Fast delivery (2-4weeks)
• Free sample (short meters)
• CE/ROSH/UL certification
• Detailed test data available |
