Quick Details:
Semi steel cable, with MIL-C-17 the main type of 680-034/047/063/065/086/141/250/690-086/141/250, with wages of high frequency, shielding, low attenuation, low standing wave ratio and other characteristics, mainly used in mobile communication, radar, navigation, weapon system, high frequency signal transmission of medical devices.
• Place of Origin: Zhejiang, China (Mainland)
• Brand Name: G-WIRE
• Model Number: GW-4012
• Conductor Material: SCCS/SC
• Insulation Material: LD PTFE
• Jacket: /
• Number of Conductors: SINGLE
• Application: Precise measurement
Packaging & Delivery:
Packaging: 1.00m/1.50meter with plastic tube
Other packing available according to your request.
Delivery: 15-30 days after order
Specifications:

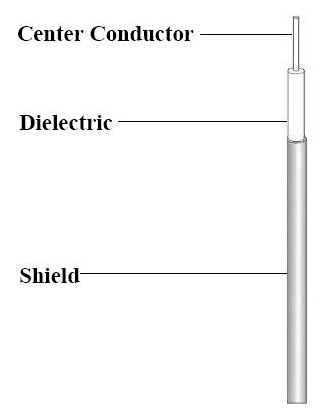

Center Conductor Dia. 0.070” 1.78mm SCCS(Silver plated Copper Clad Steel)/SC (Silver plated Copper)
Insulation Dia. 0.21”,5.33mm LD PTFE
Shield Type Copper tube/Tin plated copper tube/silver plated copper tube /Tin plated Aluminum tube 100% Coverage Dia.0.250” (6.35mm)
Capacitance 87.90+/-3 pF/m Nom
Impedance 50+/-2 Ohm
Corona Extinction Voltage 2500VRMS@60Hz
Voltage Withstanding 5000VRMS@60Hz
Operating Frequency ≤20GHz
Operation Temp. -55℃-125℃
Minimum Inside Bend Radius 30.00mm
More information:
• Good quality, competitive price
• Fast delivery (2-4weeks)
• Free sample (short meters)
• Detailed test data available
|
