Quick Details:
Semi steel cable, with MIL-C-17 the main type of 680-034/047/063/065/086/141/250/690-086/141/250, with wages of high frequency, shielding, low attenuation, low standing wave ratio and other characteristics, mainly used in mobile communication, radar, navigation, weapon system, high frequency signal transmission of medical devices.
• Place of Origin: Zhejiang, China (Mainland)
• Brand Name: G-WIRE
• Model Number: GW-4005
• Conductor Material: SCCS
• Insulation Material: PTFE
• Jacket: /
• Number of Conductors: SINGLE
• Application: Precise measurement
Packaging & Delivery:
Packaging: 1.00m/1.50meter with plastic tube
Other packing available according to your request.
Delivery: 15-30 days after order
Specifications:

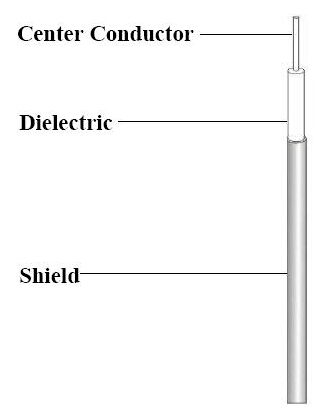

Center Conductor Dia. 0.0362” 1* 0.92mm SCCS(Silver plated Copper Clad Steel)
Insulation Dia. 0.066”,1.68mm Ultra low density PTFE
Shield Type Copper tube/Tin plated copper tube/silver plated copper tube 100% Coverage Dia.0.086” (2.20mm)
Capacitance 190.40+/-3 pF/m Nom
Impedance 25+/-2 Ohm
Corona Extinction Voltage 750VRMS@60Hz
Voltage Withstanding 1000VRMS@60Hz
Operating Frequency ≤50GHz
Operation Temp. -55℃-125℃
Minimum Inside Bend Radius 7.63mm More information:
• Good quality, competitive price
• Fast delivery (2-4weeks)
• Free sample (short meters)
• Detailed test data available |
