Quick Details:
Semi steel cable, with MIL-C-17 the main type of 680-034/047/063/065/086/141/250/690-086/141/250, with wages of high frequency, shielding, low attenuation, low standing wave ratio and other characteristics, mainly used in mobile communication, radar, navigation, weapon system, high frequency signal transmission of medical devices.
• Place of Origin: Zhejiang, China (Mainland)
• Brand Name: G-WIRE
• Model Number: GW-4001
• Conductor Material: SCCS
• Insulation Material: PTFE
• Jacket: /
• Number of Conductors: SINGLE
• Application: Precise measurement
Packaging & Delivery:
Packaging: 1.00m/1.50meter with plastic tube
Other packing available according to your request.
Delivery: 15-30 days after order
Specifications:

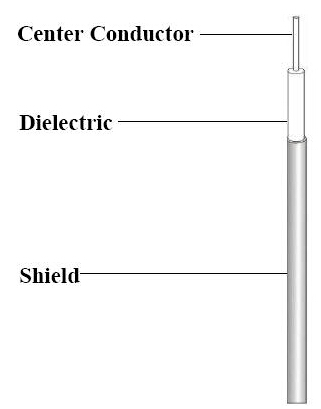

Center Conductor Dia. 0.008” 1* 0.20mm SCCS(Silver plated Copper Clad Steel)
Insulation Dia. 0.026”,0.66 mm Ultra low density PTFE
Shield Type Copper tube/Tin plated copper tube/silver plated copper tube 100% Coverage, Dia.0.034” (0.86mm)
Capacitance 95.10+/-3 pF/m Nom
Impedance 50+/-2 Ohm
Corona Extinction Voltage 750VRMS@60Hz
Voltage Withstanding 2000VRMS@60Hz
Operating Frequency ≤155GHz
Operation Temp. -55℃-125℃
Minimum Inside Bend Radius 3mm More information:
• Good quality, competitive price
• Fast delivery (2-4weeks)
• Free sample (short meters)
• Detailed test data available |
