Quick Details:
Micro-Coaxial cable has a unique figuration with a super slim size, has good performance of flexibility and pliability .and it is suitable to be used for inner date transmission of the folding or rolling mini-electronics, twin Micro-coaxial cables，the LVDS signal,the digital signal transmission of the mobile phones, micro-vidicon, micro-electronics and telecommunication devices.
• Place of Origin: Zhejiang, China (Mainland)
• Brand Name: G-WIRE
• Model Number: GW-6004
• Conductor Material: SC/SCCS
• Insulation Material: FEP
• Jacket: FEP
• Number of Conductors: 7
• Application: Data transmission
Packaging & Delivery:
Packaging: 100meter/305meter/reel/box/gift box
Other packing available according to your request.
Delivery: 15-30 days after order

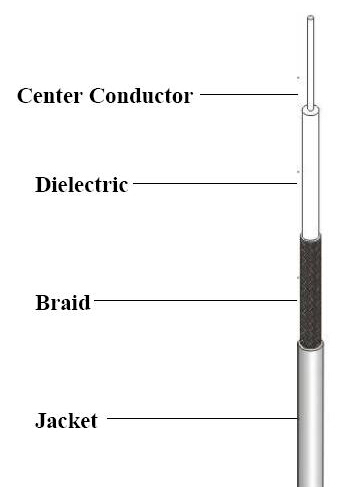

Specifications:
Center Conductor Dia. 7*0.102mm SC/SCCS
Insulation Dia. 0.035”,0.89mm FEP
Shield Type 44 AWG SC(Silver plated Copper) braid, 95% Coverage
Jacket 1.37+/-0.05mm FEP
Capacitance 105+/-3 pF/m Nom
Impedance 50+/-2 Ohm
Velocity of Propagation 69.50% Nom.
Sparker Test 2000V
Operation Temp. -65℃-165℃ More information:
• Good quality, competitive price
• Fast delivery (2-4weeks)
• Free sample (short meters)
• CE/ROSH/UL certification
• Detailed test data available |
