Quick Details:
Low loss cable, products with low or ultra-low density PTFE medium, the medium can provide low loss characteristics, good phase stability, flexible cable and standard compared with soft more outstanding, suitable for 18, 26.50, 40GHz precise measurement.
• Place of Origin: Zhejiang, China (Mainland)
• Brand Name: G-WIRE
• Model Number: GW-3003
• Conductor Material: SC
• Insulation Material: PTFE
• Jacket: FEP
• Number of Conductors: SINGLE
• Application: Precise measurement
• Color: Black/White /Customer colors
Packaging & Delivery:
Packaging: 100m/coil 305m/500m/wooden drum/pull out box/reel-in-box
Other packing available according to your requests.
Delivery: 15-30 days after order
Specifications:

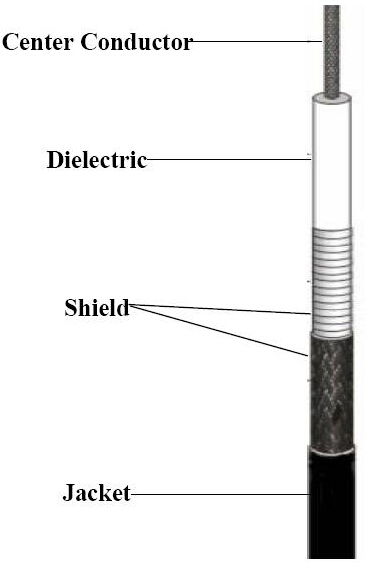

Center Conductor Dia. 0.102” 1* 2.60+/-0.01 mm SC
Insulation Dia. 0.2756”,7.00+/-0.10 mm Ultra low density PTFE
Shield Type Silver plated copper tape+95% SC Braid
Jacket Dia. 0.354” ,9.0+/-0.10 mm FEP
Capacitance 79+/-3 pF/m
Impedance 50+/-2 Ohm
Velocity of Propagation 85%
Operating Frequency 16.40GHz
Attenuation tested at 68 ºF(20 ºC)
Screening Effectiveness ≥110dB
Operation Temp. -55℃-165℃
Minimum Ben Radius 50mm
More information:
• Good quality, competitive price
• Fast delivery (2-4weeks)
• Free sample (short meters)
• CE/ROSH/UL certification
• Detailed test data available |
