Quick Details:
• Place of Origin: Zhejiang, China (Mainland)
• Brand Name: G-WIRE
• Model Number: GW-RG180A
• Conductor Material: SCCS
• Insulation Material: PTFE
• Jacket: FEP
• Number of Conductors: Stranded
• Application: Communication, electronic warfare, military navigation, radar, aviation electronic equipment
• Color: White/Brown/Customer colors
Specifications:

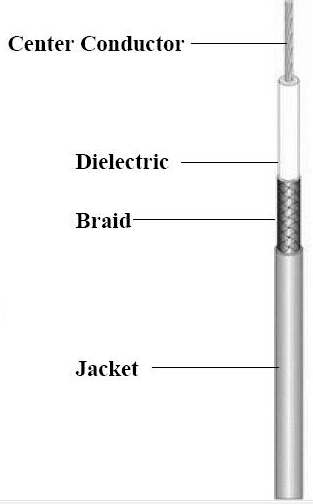

Center Conductor Dia. 7*38AWG, 7*0.10mm SCCS
Insulation Dia. 0.102”,2.59+/-0.10mm PTFE
Shield Type 95% SC Braid
Jacket Dia. 0.14” ,3.56+/-0.15 mm FEP
Capacitance 50.50+/-3 pF/m
Impedance 95+/-2 Ohm
Velocity of Propagation 69.50%
Sparker Test 2000V
Attenuation tested at 68 ºF(20 ºC)
Tested at length 100m
Operating Temperature -80 ºC-200 ºC Packaging & Delivery:
Packaging: 100m/coil 305m/500m/wooden drum/Box
Other packing available according to your requests.
Delivery: 15-30 days after order More information:
• Good quality, competitive price
• Fast delivery (2-4weeks)
• Free sample (short meters)
• CE/ROSH/UL certification
• Detailed test data available |
