Quick Details:
• Place of Origin: Zhejiang, China (Mainland)
• Brand Name: G-WIRE
• Model Number: GW-RG316A
• Conductor Material: SCCS
• Insulation Material: PTFE
• Jacket: FEP
• Number of Conductors: Stranded
• Application: Communication, electronic warfare, military navigation, radar, aviation electronic equipment
• Color: White/Brown/Customer colors

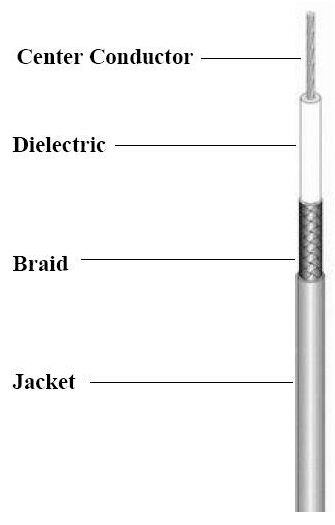

Specifications:
Center Conductor Dia. 7*34AWG, 7*0.17mm SCCS
Insulation Dia. 0.0599”,1.52+/-0.10mm PTFE
Shield Type 95% SC Braid
Jacket Dia. 0.098” ,2.50+/-0.15 mm FEP
Capacitance 96.400+/-3 pF/m
Impedance 50+/-2 Ohm
Velocity of Propagation 69.50%
Sparker Test 1500V
Attenuation tested at 68 ºF(20 ºC)
Tested at length 100m
Operating Temperature -55 ºC-200 ºC Packaging & Delivery:
Packaging: 100m/coil 305m/500m/wooden drum/Box
Other packing available according to your requests.
Delivery: 15-30 days after order More information:
• Good quality, competitive price
• Fast delivery (2-4weeks)
• Free sample (short meters)
• CE/ROSH/UL certification
•Detailed test data available |
