Quick Details:
• Place of Origin: Zhejiang, China (Mainland)
• Brand Name: G-WIRE
• Model Number: GW-RG214
• Conductor Material: SC
• Insulation Material: Solid PE
• Jacket: PVC/FR-PVC
• Number of Conductors: Stranded
• Application: Communication, electronic warfare, military navigation, radar, aviation electronic equipment
• Color: White/black/Customer colors
Specifications:

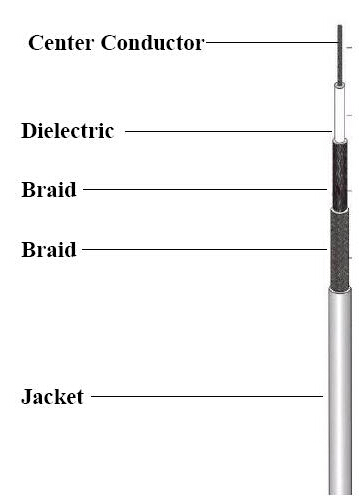

Center Conductor Dia. 7*21AWG, 7*0.752mm SC
Insulation Dia. 0.285”,7.24+/-0.10mm Solid PE
Shield Type 95% SC Braid+95% SC Braid
Jacket Dia. 0.425” ,10.80+/-0.15 mm PVC
Capacitance 101.00+/-3 pF/m
Impedance 50+/-2 Ohm
Velocity of Propagation 66%
Sparker Test 5000V
Attenuation tested at 68 ºF(20 ºC)
Tested at length 100m
Operating Temperature -20 ºC-80 ºC Packaging & Delivery:
Packaging: 100m/coil 305m/500m/wooden drum/Box
Other packing available according to your requests.
Delivery: 15-30 days after order More information:
• Good quality, competitive price
• Fast delivery (2-4weeks)
• Free sample (short meters)
• CE/ROSH/UL certification
• Detailed test data available |
