Quick Details:
• Place of Origin: Zhejiang, China (Mainland)
• Brand Name: G-WIRE
• Model Number: GW-RG304
• Conductor Material: SCCS
• Insulation Material: Solid PE
• Jacket: PVC/FR-PVC
• Number of Conductors: 1
• Application: Communication, electronic warfare, military navigation, radar, aviation electronic equipment
• Color: White/black/Customer colors
Packaging & Delivery:
Packaging: 100m/coil 305m/500m/wooden drum/Box
Other packing available according to your requests.
Delivery: 15-30 days after order

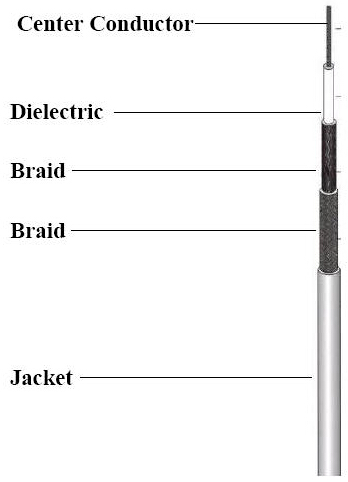

Specifications:
Center Conductor Dia. 1*15AWG, 1.50mm SCCS/SC
Insulation Dia. 0.22”,5.60+/-0.10mm Solid PE
Shield Type 95% SC Braid+95% SC Braid
Jacket Dia. 0.41” ,10.40+/-0.15 mm PVC
Capacitance 97.70+/-3 pF/m
Impedance 50+/-2 Ohm
Velocity of Propagation 66%
Sparker Test 3000V
Attenuation tested at 68 ºF(20 ºC)
Tested at length 100m
Operating Temperature -20 ºC-80 ºC More information:
• Good quality, competitive price
• Fast delivery (2-4weeks)
• Free sample (short meters)
• CE/ROSH/UL certification
• Detailed test data available |
