Quick Details:
• Place of Origin: Zhejiang, China (Mainland)
• Brand Name: G-WIRE
• Model Number: GW-RG178
• Conductor Material: BC
• Insulation Material: Solid PE
• Jacket: PVC/FR-PVC
• Number of Conductors: Stranded
• Application: Application: Communication, electronic warfare, military navigation, radar, aviation electronic equipment
• Color: White/Brown/Black/Customer colors

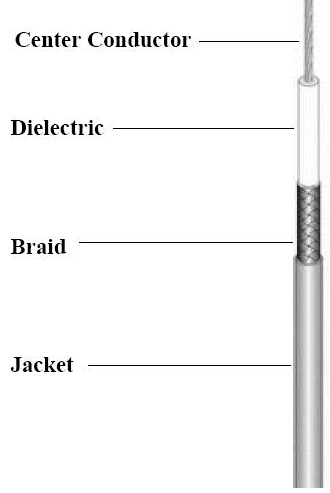

Specifications:
Center Conductor Dia. 7*38AWG, 7*0.10mm BC
Insulation Dia. 0.0394”,1.0+/-0.05mm Solid PE
Shield Type 95% SC Braid
Jacket Dia. 0.085” ,2.15+/-0.10 mm PVC
Capacitance 102.30+/-3 Pf/m
Impedance 50+/-3 Ohm
Velocity of Propagation 66%
Sparker Test 1000V
Attenuation tested at 68 ºF(20 ºC)
Tested at length 100m
Operating Temperature -20 ºC-80 ºC Packaging & Delivery:
Packaging: 100m/coil 305m/500m/wooden drum/Box
Other packing available according to your requests.
Delivery: 15-30 days after order More information:
• Good quality, competitive price
• Fast delivery (2-4weeks)
• Free sample (short meters)
• CE/ROSH/UL certification
• Detailed test data available |
