Quick Details:
• Place of Origin: Zhejiang, China (Mainland)
• Brand Name: G-WIRE
• Model Number: GW-RG174
• Conductor Material: BC
•  Insulation Material: Solid PE
• Jacket: PVC/FR-PVC
• Number of Conductors: Stranded
• Application: Communication, electronic warfare, military navigation, radar, aviation electronic equipment
• Color: White/Brown/Black/Customer colors
Specifications:

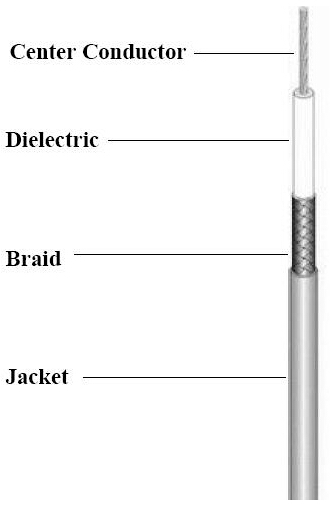

Center Conductor Dia. 7*34AWG, 7*0.16mm BC
Insulation Dia. 0.06”,1.52+/-0.05mm Solid PE
Shield Type 90% TC Braid
Jacket Dia. 0.102” ,2.6+/-0.10 mm PVC
Capacitance 101+/-3 pF/m
Impedance 50+/-3 Ohm
Velocity of Propagation 66%
Sparker Test 1500V
Attenuation tested at 68 ºF(20 ºC)
Tested at length 100m
Operating Temperature -20 ºC-80 ºC

Packaging & Delivery:
Packaging: 100m/coil 305m/500m/wooden drum/Box
Other packing available according to your requests.
Delivery: 15-30 days after order

More information:
• Good quality, competitive price
• Fast delivery (2-4weeks)
• Free sample (short meters)
• CE/ROSH/UL certification
• Detailed test data available
